CIP Pump BCP2002

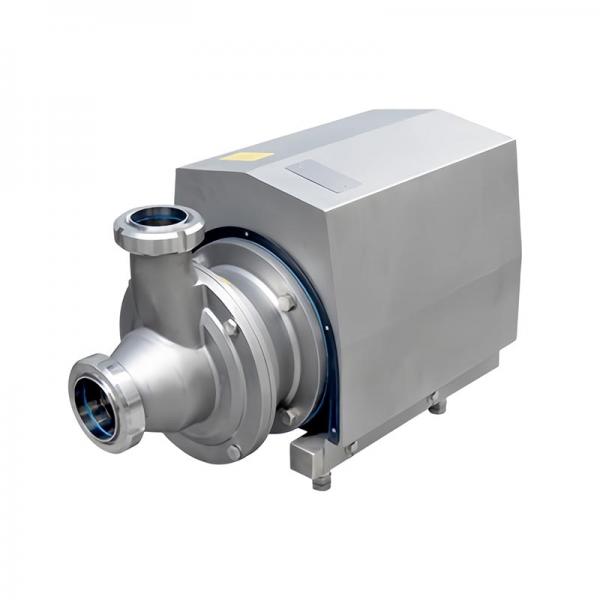

CIP Pump

Stainless Steel Sanitary Tank Cleaning Slef Priming Pump

Application

Mainly used to deliver the liquid containing a part of gas in the fields such as pharmaceutical, alcohol ,food ,chemicals ,beverages etc. and also used as return pump in on -the –spot CIP cleaning system , and used for liquid delivery that need high pressure filter .

Optimized internal geometric structure helps to reduce loss.
Advanced seal design.
Adopting the sideway principle.
Outstanding self-pumping ability.
Perfect sanitary property and cleanability.
Cost effective maintenance.
Low power consumption, low noise

All the part contact with medium are made of AISI316L stainless steel.
Other parts：AISI304 stainless steel
The sealing contact with medium：EPDM
Wiredrawing Surface treatment or Sand blast treatment

I)According to the configuration ,we adopt three phase“ABB”brand AC motor. The motor design
according to the International Eltronical Commission IEC 60034.IEC60072,and comply with the
EC requirements of “CE”marking requirement .

II).The explosion-proof motor also available ,that can meet with the requirement of different
applications .
III)It with excellent electric performance ,and with low niose,low vibration,the protection grade is
IP55,insulation grade is F.
Iv) The operate involtage
≤3Kw，220-240V/380-420V，△/Y
＞3Kw，380-420V/660-690V, △/Y
v)Frequency 50Hz/60Hz

VI)Operate way :continously


VII)Running Speed : 2900r/min
