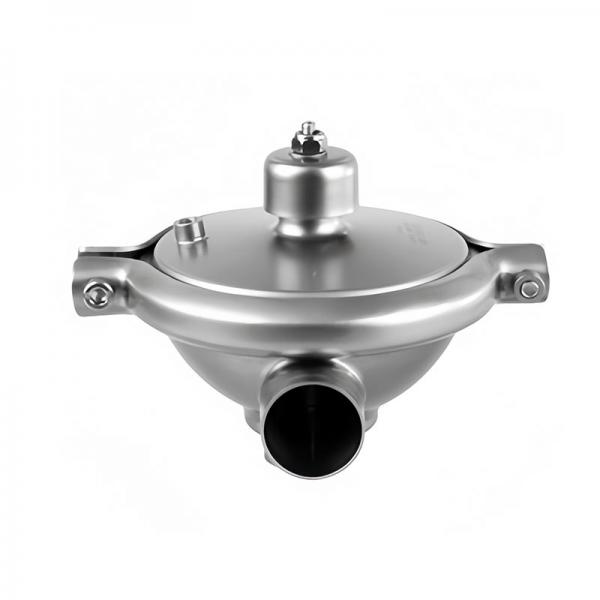

CPM Valve ACV7001

CPM Valve

Stainless Steel Sanitary Constant Pressure Regulating Valve

Ideal fluidity
Easy cleanability
Simple operation , easy repairment and maintainance
The pressure is adjustable
Temperature range: -10degree~~95degree

The CPM valve is composed of valve body, valve cap, clamp, and gasket set. As the entry and outlet is 90 degree angle, so there is no retentions.
Max. Pressure: less than 10 bar
Min. Pressure: 0bar
Material temperature: -10℃～140℃
Flow range KV, Open: 23m3/h
Flow range KV, low production: 2m3/h
Optional range KV, 15m3/h

Size: 1', 1.5", 2", 2.5"
