Diaphragm Valve ADV3008

Diaphragm Valve

Stainless Steel Sanitary Quick Release Manual Diaphragm Control Valve

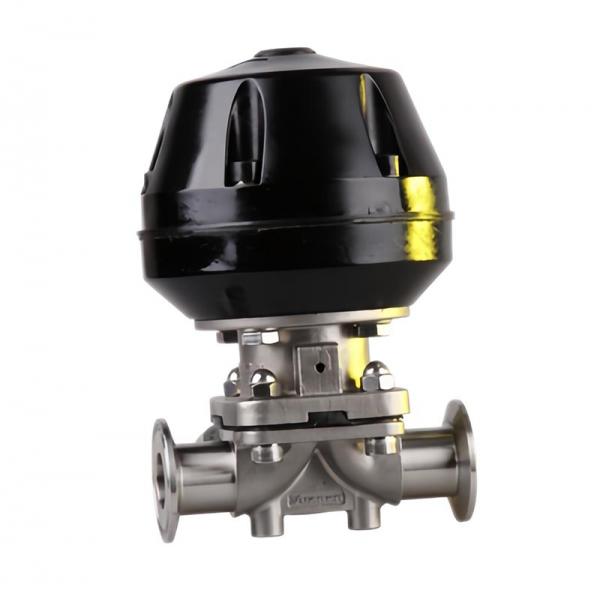

Pneumatic diaphragm valve
Stainless steel pneumatic sanitary Diaphragm Valve
The diaphragm valve is widely used for pharmaceutical industries. This valve is widely used for controlling flow rate.
Features:

Aseptic design
The valves are suitable for applying in high flow rate, high corrosivity, high viscosity fluid.
mooth contacting surface, non retention dead angle
easy disassembly, easy maintainenance, easy to clean, CIP
Unique diaphragm type actuator which prolong the diaphragm service life effectively.

Valve body which contacts with liquid is made of SS316L. The non-contacting part is made of SS304 material.
Valve body type: Two way mirror type, two way sand blasting type, three way, U type, T type
Actuator type: Stainless steel type, aluminium type , Plastic type
Gasket: Silicone, EPDM, EPDM+PTFE integrated membrane , EPDM/PTFE seperate membrane,
Integrated membrane
Max. Pressure: 10bar
Max. Temperature: -10 ~ +120 degree
Material quality: SS 316L
Inside surface finish: Ra0.4
Standard: DIN, SMS
Connection: welded, clamped, flanged,
Size:
Mini type: DN6, DN8, DN10,
Medium type: DN15-DN50
Large type: DN65, DN80, DN100
Applications: Widely used for pharmaceutical and chemical industries
