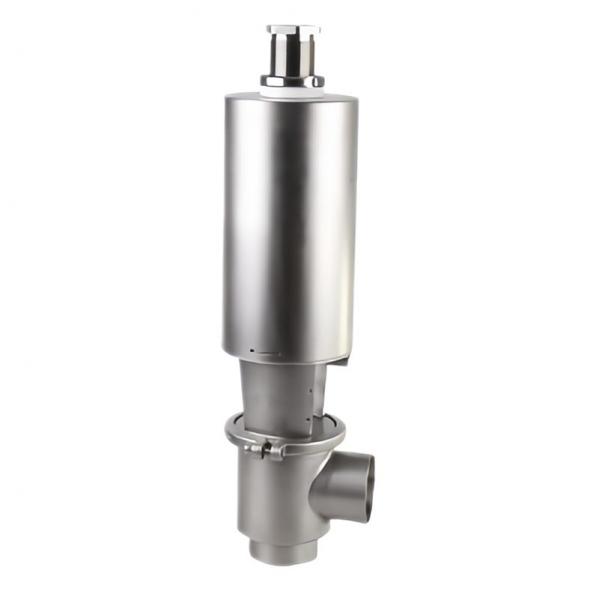

Divert Seat Valve ASV4001

Divert Seat Valve

Stainless Steel Sanitary Pneumatic Diversion Valve With SS Actuator

The Flow diverting valve is used to change the flow direction. We have manual and pneumatic flow diverting valve. The main principle is to change the valve stem position. We have different valve body assemblies. You can check and choose the type wanted.
The flow divertion valve is used in singular liquid, or non-mixed liquid.

The divert valve is safe, clean, long-lasting and nice body.
The valve can switch between NC and NO type very easily and fast.
Easy disassemble and easy maintenance.

Open support bracket which separates the actuator and valve body, the design makes shaft seal checking easily
Spherical valve body assures ideal fluidity
Dealing material softly
Ultra-thick spherical design avoid the deshape caused from heating stress
All the contacting parts can be cleaned together or alone
Temperature: -10 degree to 120 degree

Gasket: EPDM, silicone, teflon ( FDA approved raw material)
Size range: 3/4”, 1”, 1 1/4”,1 1/2”, 2”, 3”, 4”
Standard: 3A, SMS, ISO, DIN, BS, JIS
Connection: clamp , weld, Male, ect
Material grade: SS304 or SS316L

inner surface: 0.4Ra
Outer surface : 0.8Ra
Our safety valves are widely used for food, beverage, dairy, biotech, pharmacy, gas and etc industries.
