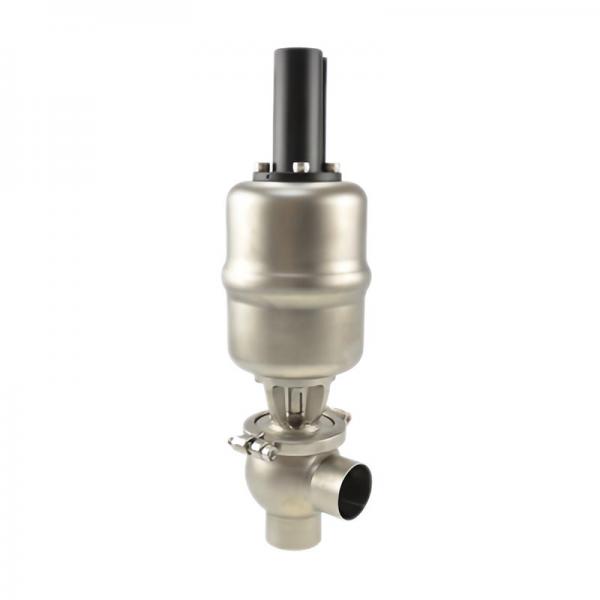

Divert Seat Valve ASV4011

Divert Seat Valve

Stainless Steel Sanitary Portable Weld Pneumatic Diversion Valve

Flow diversion valve
Stainless steel shutoff / flow diversion valve
The valve is used to stop the liquid or change the flow direction in the system.
Features:

Open support bracket which separates the actuator and valve body, the design makes shaft seal checking easily
Spherical valve body assures ideal fluidity
Dealing material softly
Ultra-thick spherical design avoid the deshape caused from heating stress
All the contacting parts can be cleaned together or alone
Temperature: -10 degree to 120 degree
High precise casting body
Pressure: 10bar
Working mode: Manual, pneumatic type
Gasket: EPDM, silicone
Easy cleaning , easy maintenance

Valve body type: 20, 30, 21, 22, 31, 32 type
Connection mode: Clamped, welded, etc
Specification: 1"-4", DN25-DN100
Material quality: SUS304, SUS316L
Surface: Mirror polishing, or sand blasting type

inner surface: 0.4Ra
Outer surface : 0.8Ra
Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries
