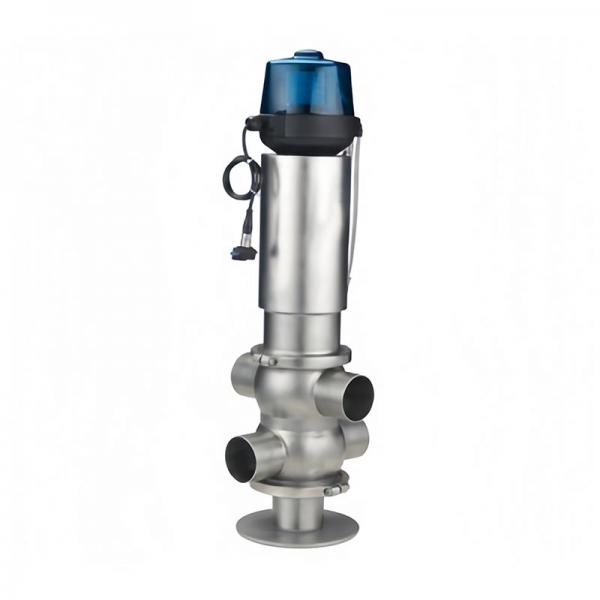

Mixproof Valve AMV9001

Mixproof Valve

Sanitary 4way double seat mixproof valve

Sanitary double seat mic-proof valves are controlled by means of compressed air. They valve is a normally closed valve.
The mix-proo valve has two independent plug seals, forming a leakage chamber between them under atmospheric pressure during ordinary working condition. In case of accident or leakage, the valve will flow into the leakage chamber and discharge through the leakage outlet. This will not case contamination or mixing.
When the valve is open, the leakage chamber is closed. The valve can flow from one pipe to another. The valve can be cleaned by CIP system.
The mix-proof valve can be equipped with smart controller, which can carry out remote control and real-time monitoring. It can also be equipped with position sensor.

Less space
Easy maintenance
No dead angle
No contacting between drain system and products
The separating chamber cleaning does not occur any hydraulic-pressure
CIP cleaning can be done any time whenever the valve is open or close
