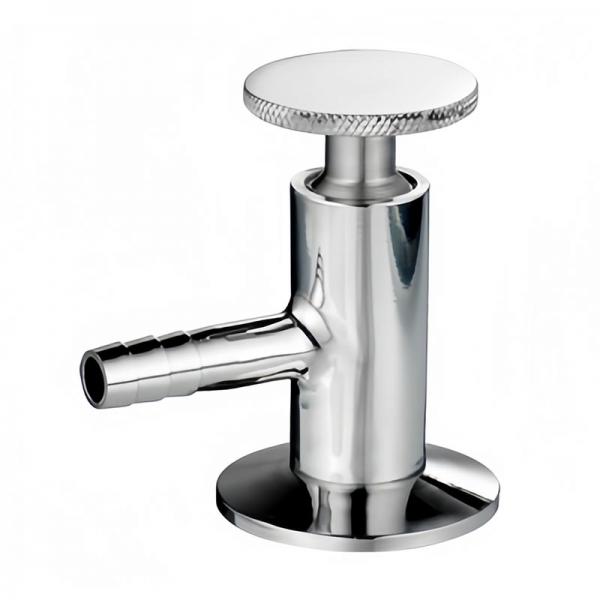

Sampling Valve ASV5004

Sampling Valve

Stainless Steel Sanitary High Quality Manual Mini Sample Valve

The valve body: SS304 or SS316L


Long service life

Easy to sterilize

Sampling work can be done any time during production, no need to stop production.

Sterilization by alcohol or steam

Material sealed by diaphragm directly

No second -time contamination, bulk or mini sample allowed

Inside surface :Ra0.5um

Outside surface0.8um



Valve head: SS304
Gasket: Silicone, EPDM
Max. pressure: 1000kpa ( valve close)
Max. pressure: 500Kpa for silicone ( valve open)
1000Kpa for stainless steel part ( valve open)

Max. temperature: 130 degree Normally we change the gasket after 100 times sterilization.
